Introduction

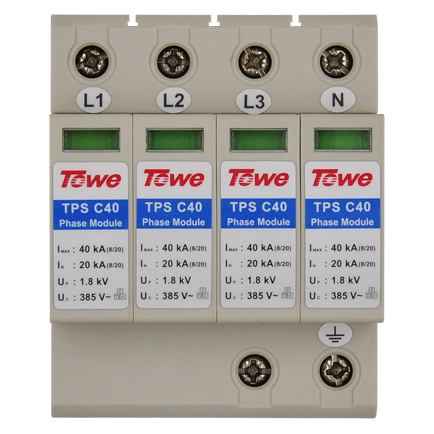

TPS C40 is a surge protective device with the function of modular combinations, which can protect the electrical devices and equipment (such as the EDP system, communication system) installed in its downstream from the surge hazard caused by switch action, electrostatic discharge, induction or direct lightning strike. The maximum discharge current can reach 40KA.So it can be used in the secondary protection for low-voltage distribution system.
Parameters
Rated voltage：230V~50Hz
The max operating voltage：255V/50Hz
Nominal discharge current：20kA
Max discharge current：40KA
Voltage protection grade：≤1.2kV
Application and maintenance
TPS C40 is a Class II(C) over-voltage protector for lightning area of LPZ 1-2 area or higher interface, and commonly used for the sub-distribution box in building or used for UPS inlet wire. One or two types modules can constitute a combination such as 2P, 3P, 4P, 1P+N, 3P+N, etc, which can provide the transient overvoltage protection for TT, TN, IT, TN-S-C and TN-C-S system.
